T10
Product SKU: DG00064
Top and bottom closure.

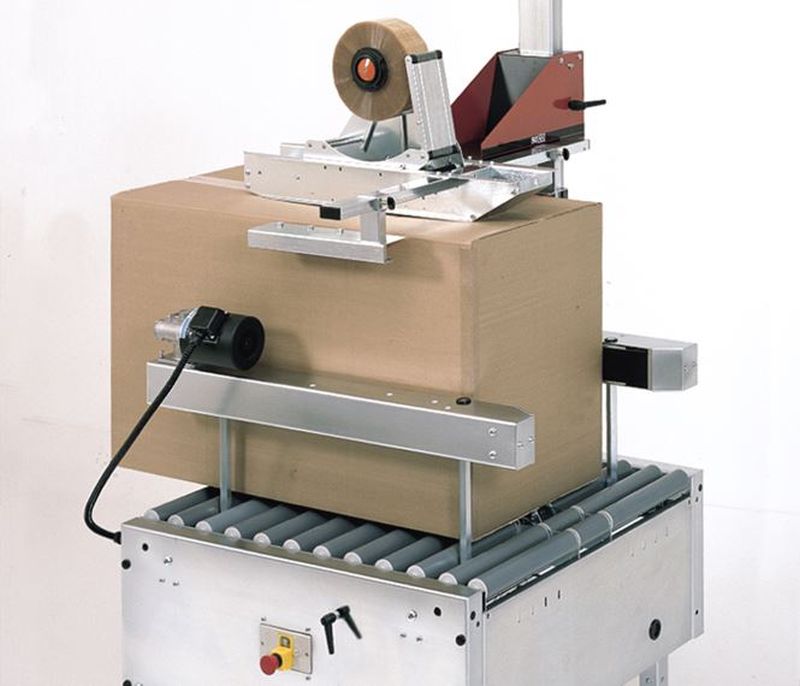

Very sturdy case sealer for round-the-clock applications and high requirements.

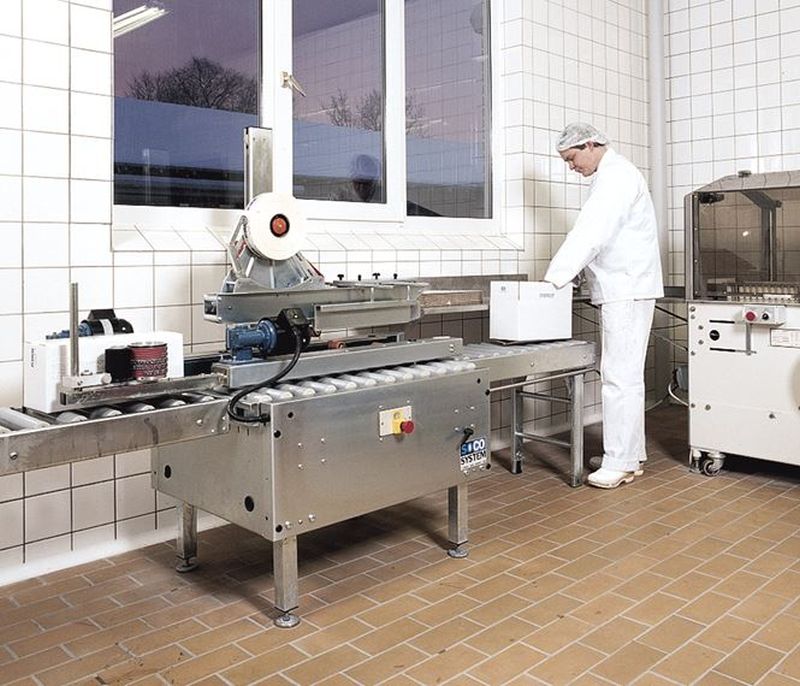

Also available in stainless steel, e.g. for the food industry were machines are required that are easy to clean and maintain in order to meet the increasing demand for hygiene.
Basic models
T-10 and T-10 Maxi (see table). Both models are available with extra high pillars. T-10 Maxi is especially suitable in industries where large cases are handled. In its standard version, the T-10 Maxi is fitted with a 75 mm dispenser with 70 mm tape overlap.

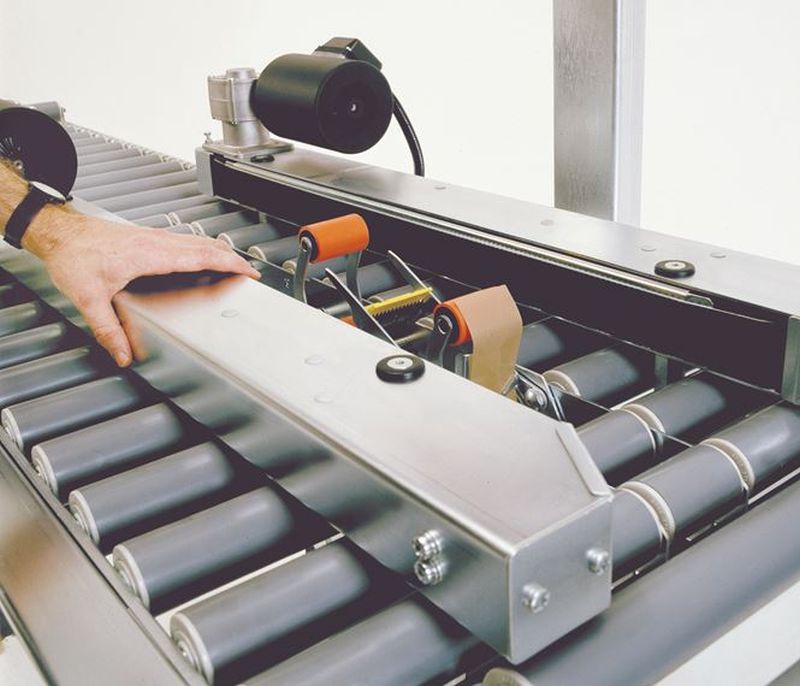

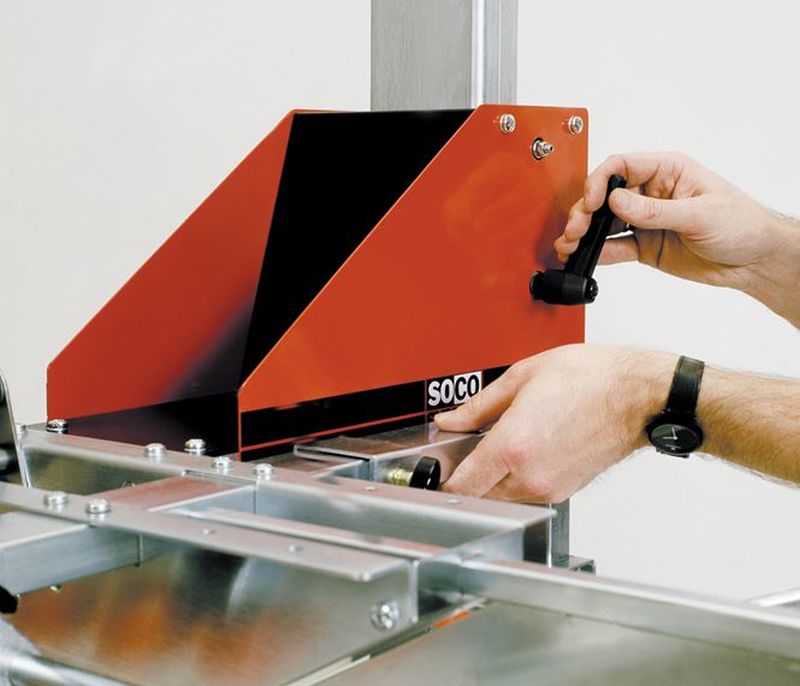

Easy to adjust for different case sizes.

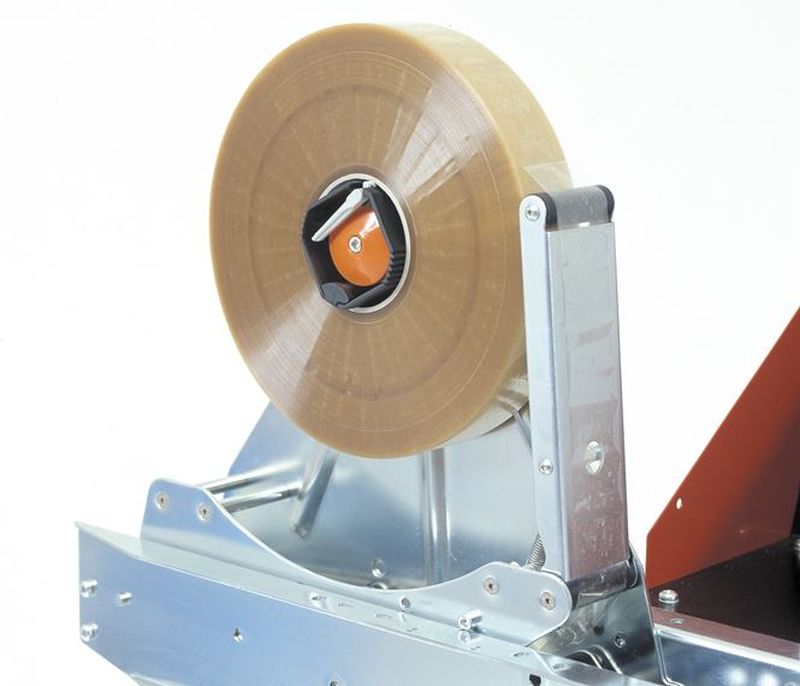

Easy tape and dispenser replacement.
Strong and compact design.
Easy to maintain with low maintenance and spare parts costs.
Electro-galvanised or stainless steel finish.
Specifications T-10 5-5-7 T-10 5-8-7 T-10 Maxi 7-5-7 T-10 Maxi 7-8-7 Case dimensions* Max. (LxWxH) mm Infinite x 515 x 505 Infinite x 515 x 815 Infinite x 725 x 505 Infinite x 725 x 815 Min. (LxWxH) mm 140 x 90 x 80/120** 140 x 90 x 80/120** 140 x 140 x 110/150** 155 x 140 x 110/150** Tape overlap 70 mm Standard Standard Standard Standard 50 mm Option Option Option Option Tape width 25 - 30 mm Option Option Option Option 38 - 50 mm Standard Standard Option Option 50 - 75 mm Option Option Standard Standard Side drives Height 50 mm Standard Standard Option Option Height 80 mm Option Option Standard Standard Working height max./min. 920 - 820 mm Option Option Option Option 820 - 720 mm Option Option Option Option 720 - 620 mm Standard Standard Standard Standard 620 - 520 mm Option Option Option Option 520 - 420 mm Option Option Option Option Weight kg 165 165 170 170 Capacity* Max. 30/ min. Electric specifications 3 x 230/400 V, 50-60 Hz, or 3 x 415/460 V, 50-60 Hz. Connected load 0.3 kW. Other specifications available upon request. Tape diameter Max. 385 mm. Standard Standard Option Optional * Depending on the construction and quality of the case. ** Without or with side pressure rollers. Subject to alteration.
