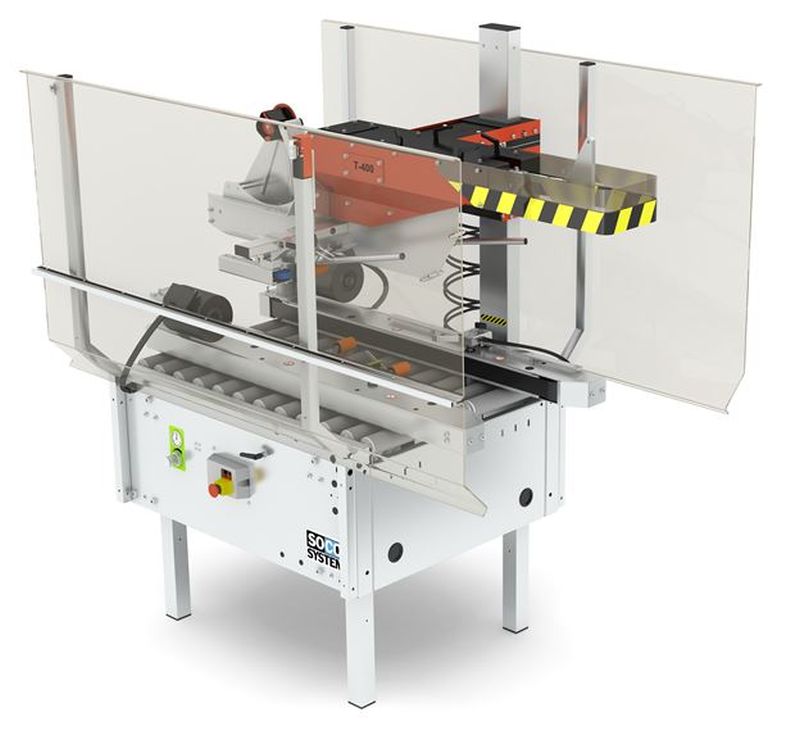

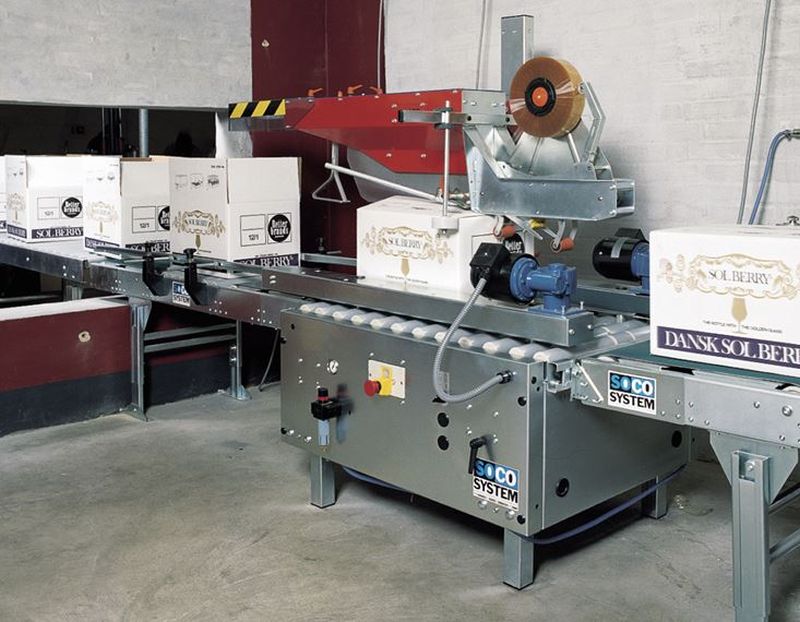

T400
Product SKU: DG00065
Top and bottom closure.
The machine is constructed for 'round-the-clock' operation with minimum service requirements.
The short length of the machine ensures high production capacity and maximum space utilisation.
Ideal for integration into fully automatic packaging lines of uniform cases in batches.
Basic Models
The standard version is available in three constructions (see table). All three machines can be fitted with extra-high pillars.
Read more about our flexible packing stations.
Easy to adjust for different case sizes.
Easy tape and dispenser replacement.
Compact design.
Combined with feed-in control function, efficient separation and maximum utilisation of the capacity of the case sealer is ensured.
Easy to maintain with low maintenance and spare parts costs.
Electro-galvanised or stainless steel finish.
Specifications T-400 5-5-7 T-400 5-8-7 T-402 5-5-7 T-402 5-8-7 T-402 Maxi 7-8-7 Case dimensions* Max. (LxWxH) mm 550 x 460 x 470 550 x 460 x 770 750 x 460 x 470 750 x 460 x 770 750 x 710 x 625 Min. (LxWxH) mm 200 x 120 x 95 200 x 120 x 95 200 x 120 x 95 200 x 120 x 95 200 x 170 x 125 Tape overlap 70 mm Standard Standard Standard Standard Standard 50 mm Option Option Option Option Option Tape width 25 - 30 mm Option Option Option Option Option 38 - 50 mm Standard Standard Standard Standard Option 50 - 75 mm Option Option Option Option Standard Side drives Height 50 mm Standard Standard Standard Standard Option Height 80 mm Option Option Option Option Standard Working height max./min. 920 - 820 mm Option Option Option Option Option 820 - 720 mm Option Option Option Option Option 720 - 620 mm Standard Standard Standard Standard Standard 620 - 520 mm Option Option Option Option Option 520 - 420 mm Option Option Option Option Option Weight kg 175 175 175 175 220 Capacity* Max. 18/min. Electric specifications 3 x 230/400 V, 50-60 Hz, or 3 x 415/460 V, 50-60 Hz. Connected load 0.3 kW. Other specifications available upon request. Air consumption Max. 0.6 l at 6 bar per case. Tape diameter Max. 385 mm. Standard Standard Option Optional * Depending on the construction and quality of the case. Subject to alteration.
