TT10
Product SKU: DG00067
Top closure.

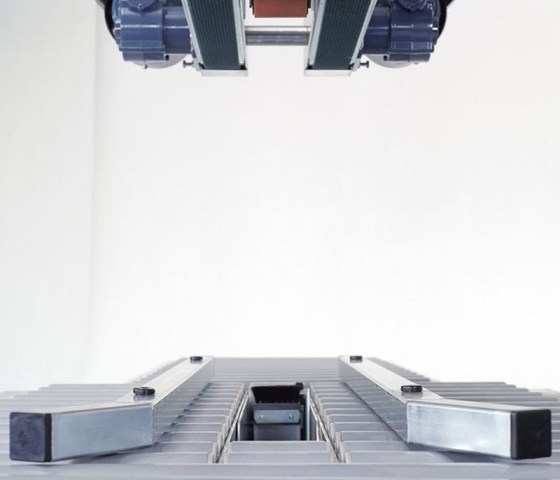

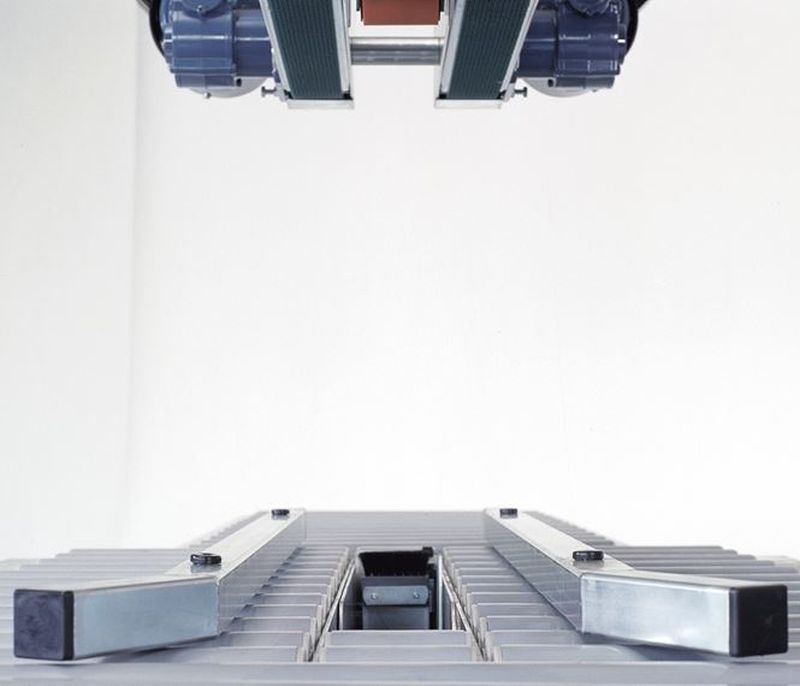

TT-10 is designed to handle primarily flat items such as graphics, mirrors, cabinet doors, half-knock-down furniture, book parcels, etc. requiring top taping only.
Basic models
TT-10 and TT-10 Maxi (see table).
TT-10 Top and bottom sealer

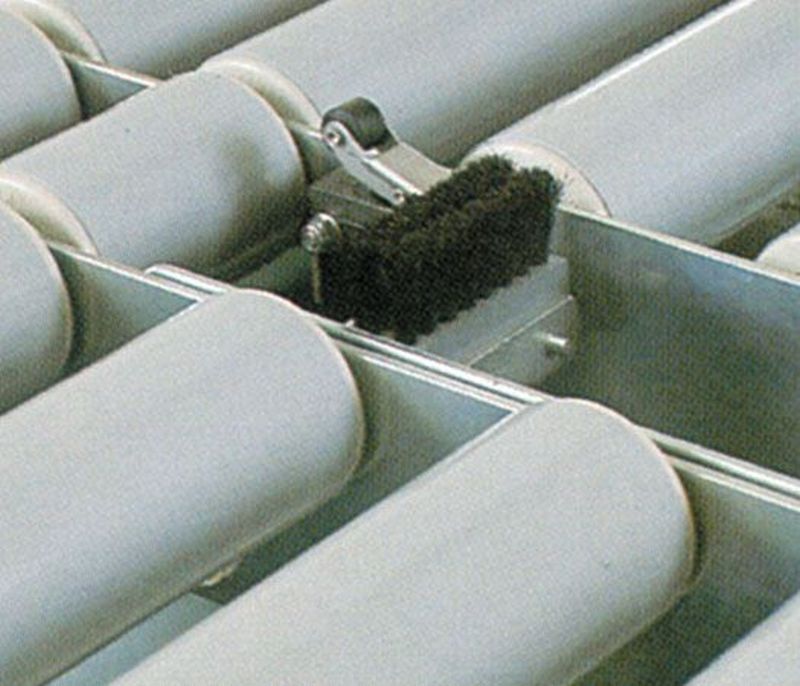

The brush unit can be removed without the use of tools and replaced by a standard dispenser. In this way, the TT-10 can be used as a top and bottom sealer for traditional cases.
Easy to adjust for different case sizes.

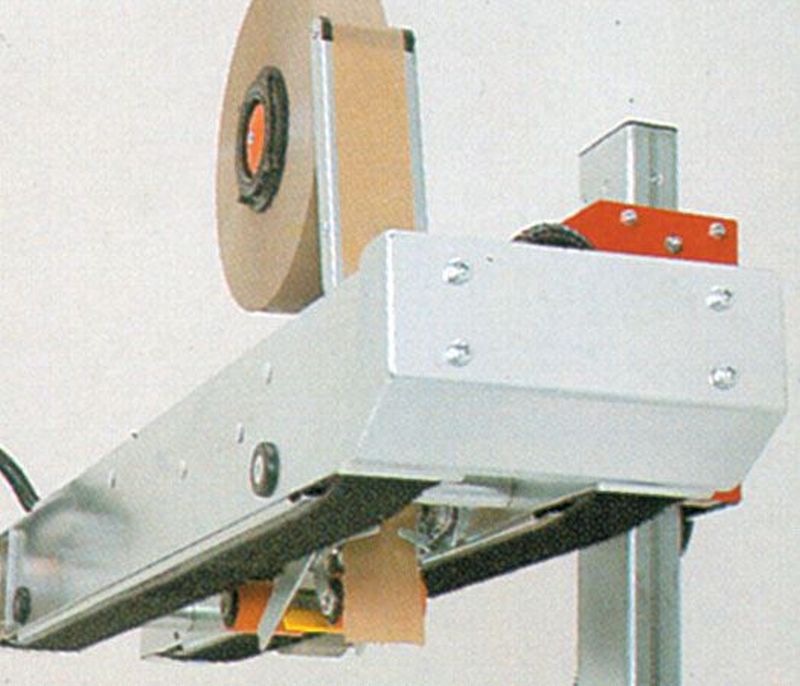

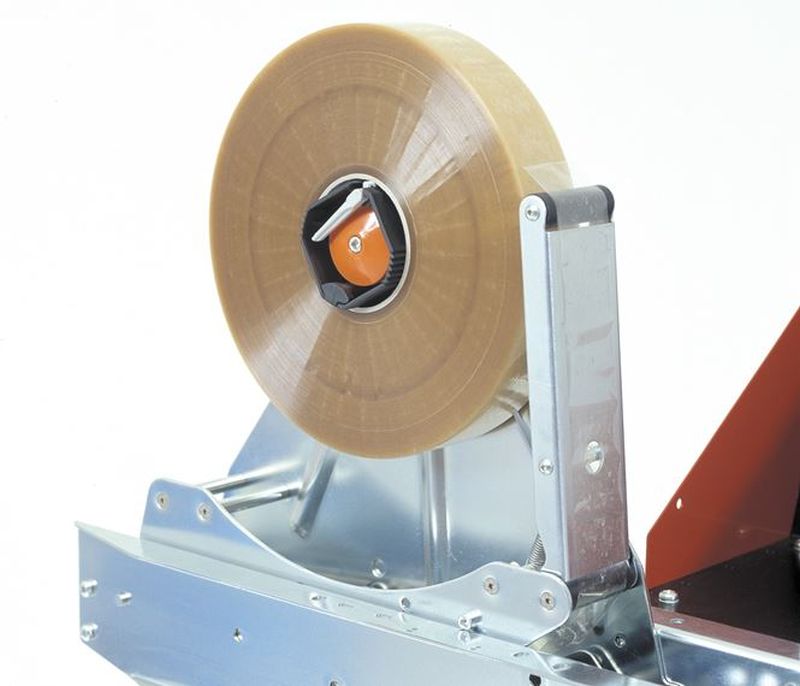

Easy tape and dispenser replacement.
Easy to maintain with low mainteance and spare parts costs.
Electro-galvanised finish.
Specifications TT-10 5-5-7 TT-10 Maxi 7-5-7 Case dimensions* Max. (LxWxH) mm Infinite x 670 x 200 Infinite x 880 x 200 Min. (LxWxH) mm 140 x 150 x 10 140 x 200 x 10 Tape overlap 70 mm Option Option 50 mm Standard Standard Tape width 25 - 30 mm Option Option 38 - 50 mm Standard Standard Working height max./min. 920 - 820 mm Option Option 820 - 720 mm Option Option 720 - 620 mm Standard Standard 620 - 520 mm Option Option 520 - 420 mm Option Option Weight kg 165 170 Capacity* Max. 30 cases/ min. Electric specifications 3 x 230/400 V, 50-60 Hz or 3 x 415/460 V, 50-60 Hz. Connected load 0.3 kW. Other specifications available upon request. Air consumption Max. 0.3 l at 6 bar per case. Tape diameter Max. 385 mm. Standard Standard Option Optional * Depending on the construction and quality of the case.
