BE2200, 2300AHS
Product SKU: DG00041

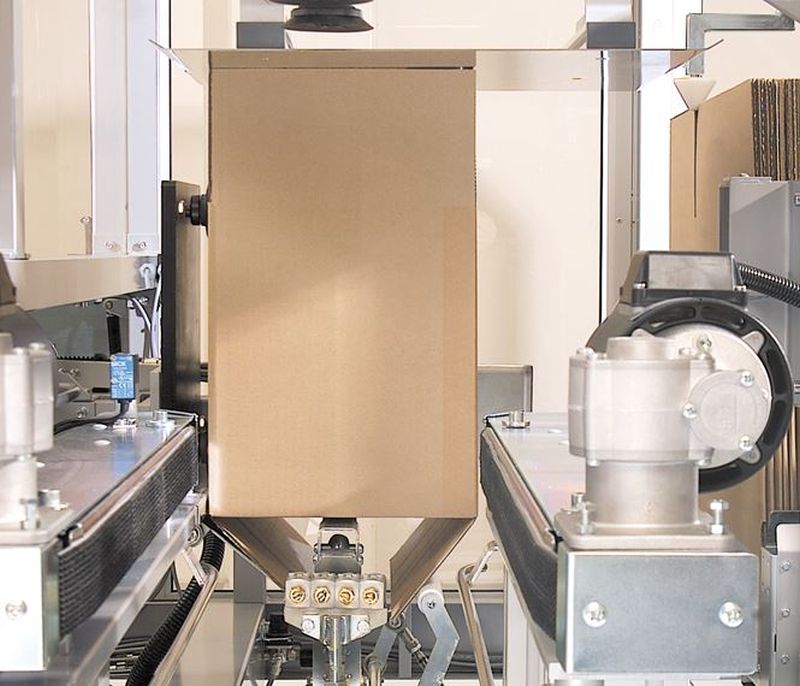

Erects the case and bottom seals it with hot melt ? ready for filling.
SOCO Pack AHS is a high speed, fully automatic case erector with integrated hot melt bottom sealer.
The machine handles FEFCO 0201 cases as standard.
As one of several additional functions, the case erector can be fitted with a side flap spreader if cases are causing problems due to poor design or material quality.
The machine is also available partly in stainless steel.

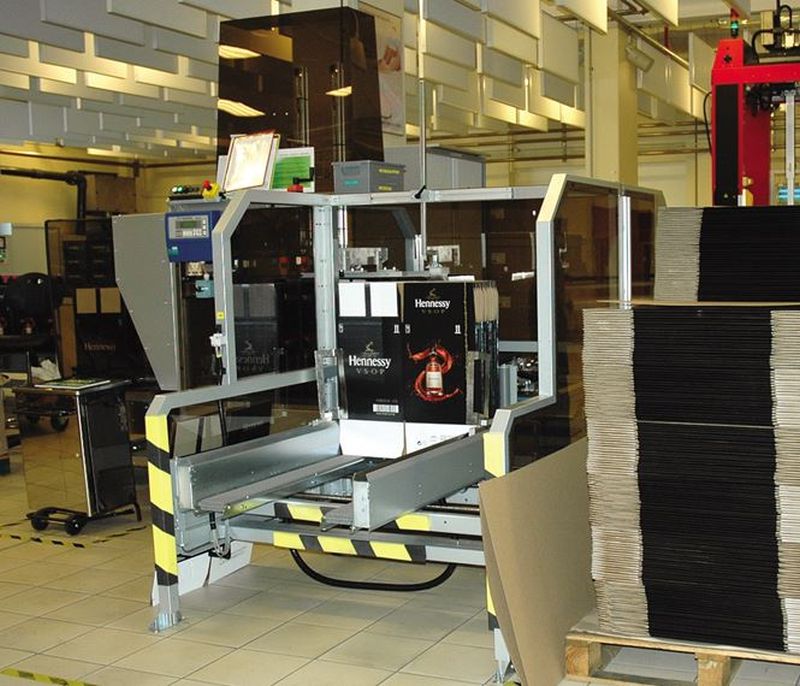

The SOCO SYSTEM case erector is the perfect start of the packaging line ? improves ergonomics and increases productivity and automation.
Compact machine.
Easy installation.

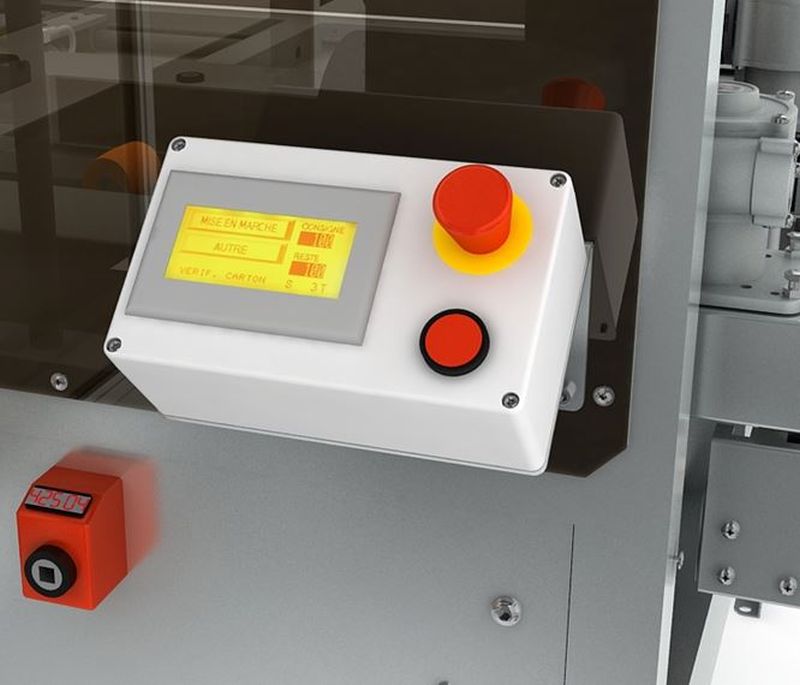

User-friendly software with numerous possibilities.
Low noise level and low air consumption.

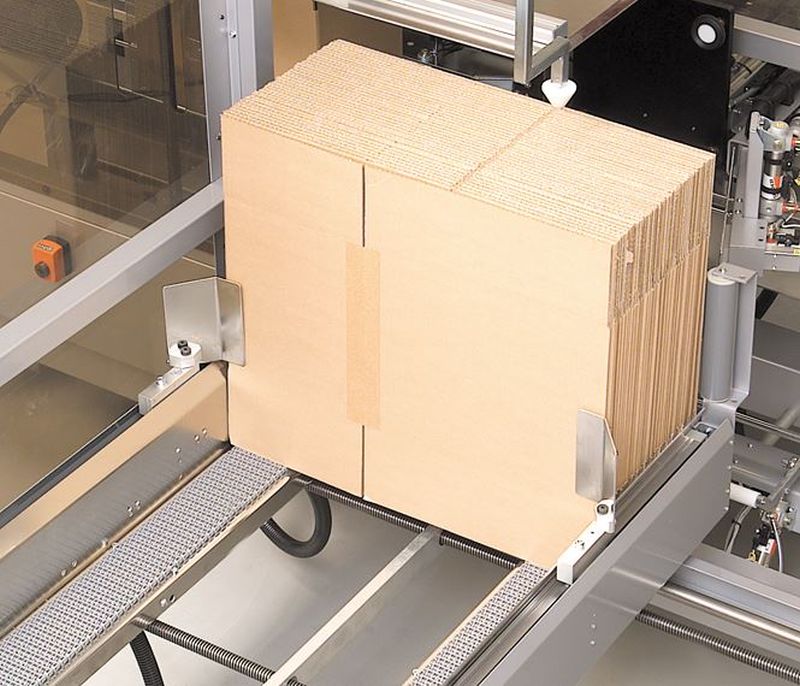

Specifications BE-2200 AHS BE-2300 AHS Case size Min. L x W x H mm 180 x 130 x 100 250 x 200 x 130 Max. L x W x H mm 450 x 300 x 450 620 x 400 x 550 Capacity cases/min. Up to 12*. Up to 10*. Case construction FEFCO 0201. Other constructions available on demand. Case material Corrugated board thickness 2.0 - 7.0 mm (a- b- c- b/c-flute). Case cardboard magazine capacity Approx. 190 pcs in b-flute. Suction plate Interchangable suction plate. The machine is delivered with one vacuum head as standard. Hot-melt equipment Nordson Problue 4 kg as standard. Electrical specifications 4.5 kW, 3 x 400/230 V + PE, 50/60 Hz. Air consumption 65.5 - 72.5 l free air/cycle, min 600 kPa, 1/2' connection. Noise level Max. 74 dBa. Colour As standard, the case erector is supplied in RAL-9006 (light grey). Queue control Queue control is standard.
