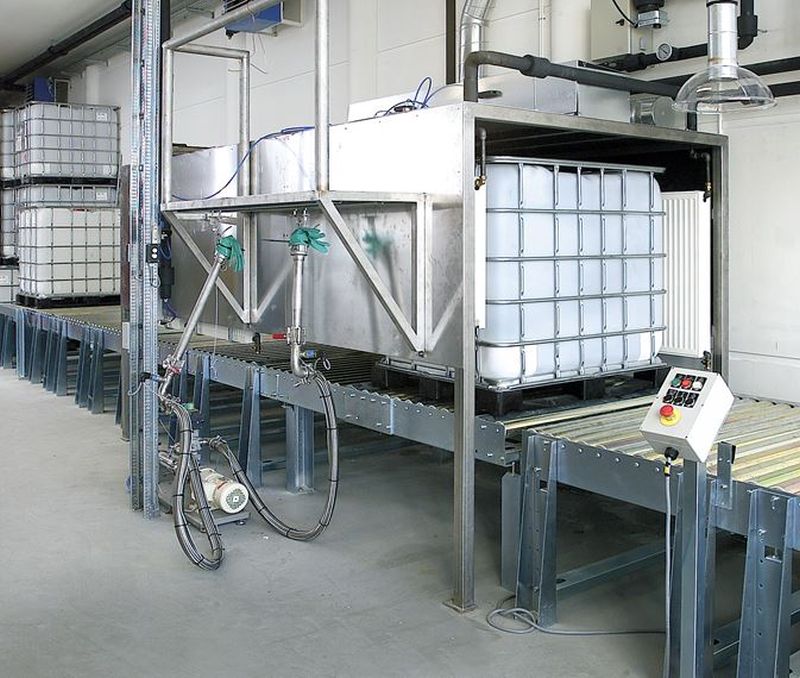

Driven pallet roller conveyor 190mm
Product SKU: DG00089
For support or floor mounting.
The maximum length of a roller conveyor with one gear motor is 4,5 m with a maximum payload of 1500 kg.
The conveyors can be mounted directly on the floor without supports.
All sections are supplied with coupling fittings.
Silent - minimal friction.
Smooth design - no sharp edges.
Easy to relocate and extend.
Specifications Surface treatment Electro galvanized steel with the exception of gear motor, chains, and roller axles. Rollers are electro galvanized with yellow crome. Frames Cold-bend angle profiles bolted to C-profile cross bars with supports. Rollers ? 80 mm electro galvanized steel tubes. Axle diameter ? 17 mm. Bearings 6203 - 2rs. Roller fittings Rollers are suspended between side frames by means of M10 axle. Payload For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM. Standard height The total height from floor to top of rollers is 190 mm. Chain drive Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2' sprockets of hardened steel are integrated with the bearing of the roller. Chain cover Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor. Gear motor 0.37 kW. Hollow shaft worm reduction gear sidemounted on conveyor frame. Speed 11.4 m/min (other speeds available). Subject to alteration.
