Non driven 2 part roller conveyor
Product SKU: DG00088

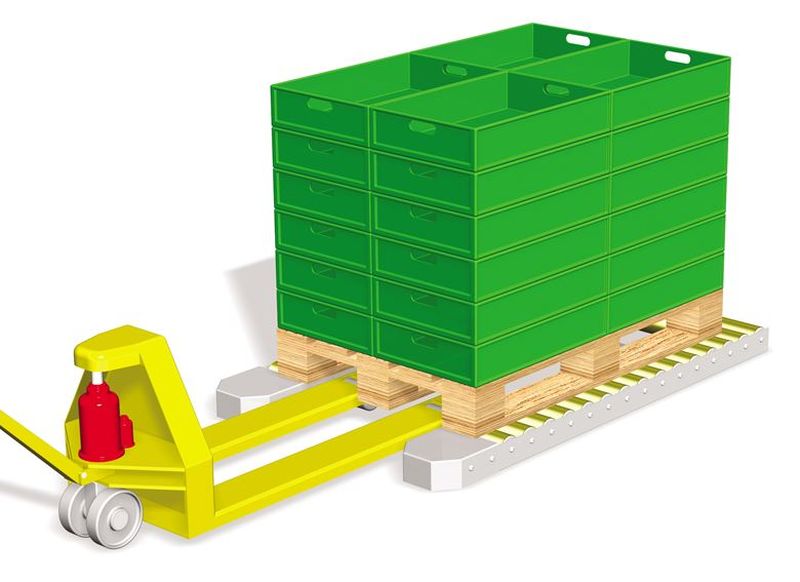

The 2-part roller conveyors make it possible to lead pallets from a roller conveyor in position for collection by hand lift truck.
Please note:
NON driven pallet conveyors require appropriate fencing for personnel security.
Specifications Surface treatment Electro galvanized steel with the exception of chain and roller axles. Rollers are electro galvanized with yellow crome. Frames Cold-bend angle profiles bolted to C-profile cross bars with supports. Rollers ? 80 mm electro galvanized steel tubes. Axle diameter ? 17 mm. Bearings 6203 - 2rs. Roller fittings Rollers are suspended between side frames by means of M10 axle. Payload For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM. Standard height The total height from floor to top of rollers is 90 mm. Chain drive Chains operate beneath roller surface. Chain drive is from roller to roller. ?' sprockets of hardened steel are integrated with the bearing of the roller. Chain cover Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor. Subject to alteration.
